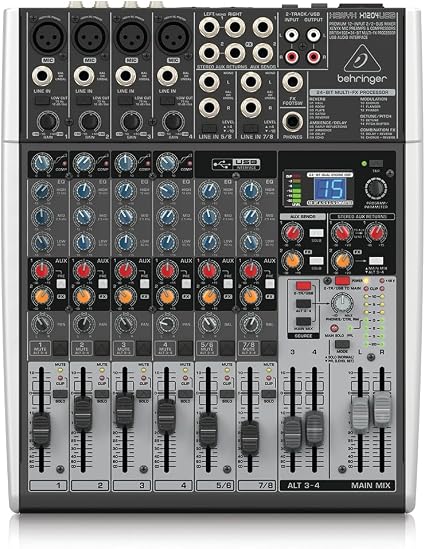

Behringer XENYX X1204USB – Professional 12-Input Audio Mixer
The Behringer XENYX X1204USB is a versatile 12-input, 2/2-bus analog mixer designed for live performances, home recording, podcasting, rehearsals, and other audio production applications.
It combines four studio-grade XENYX microphone preamps, one-knob compressors, British-style channel EQ, a built-in 24-bit digital Multi-FX processor, and a USB audio interface in one compact unit.
Whether you are mixing vocals, connecting instruments, recording music, or managing audio for live events, the X1204USB provides practical controls and flexible connectivity for different audio setups.
With its built-in USB connection, you can connect the mixer to a compatible Windows PC or Mac and record audio from connected sources directly to your computer.
12-Input Design and Flexible Audio Mixing
The Behringer XENYX X1204USB features a 12-input design that supports a variety of audio sources, including microphones, instruments, and other compatible line-level equipment.
Its four mono microphone channels feature XENYX microphone preamps, while the stereo channels provide additional options for connecting audio sources.
The mixer also includes dedicated channel controls, level adjustments, and routing options to help you manage different signals within your setup.
As a result, it is suitable for musicians, content creators, small studios, churches, rehearsal spaces, and live sound applications that require flexible audio mixing.
Four XENYX Microphone Preamps
The X1204USB features four onboard XENYX microphone preamps designed to deliver clear sound and generous headroom.
These preamps help you capture vocals, spoken-word recordings, and other microphone signals with detailed audio reproduction.
The mixer also supports switchable +48V phantom power for compatible condenser microphones.
This makes the X1204USB a practical option for vocal recording, presentations, live performances, and other applications that require multiple microphone inputs.
One-Knob Compressors for Better Dynamic Control
The Behringer XENYX X1204USB includes one-knob compressors on its mono channels.
Compression helps control the difference between louder and softer parts of an audio signal. It can make vocals and instruments sound more consistent when applied appropriately.
The simple single-knob design allows you to adjust compression without navigating complicated settings.
Therefore, you can manage vocal dynamics and add punch to suitable instrument signals during recording or live mixing.
British-Style Channel EQ
The X1204USB features musical three-band channel equalisation inspired by classic British mixing consoles.
The EQ controls let you adjust high, mid, and low frequencies to shape the sound of individual channels.
For example, you can reduce unwanted low-frequency energy, bring vocal presence forward, or adjust an instrument’s tonal balance to help it sit better in the mix.
These controls give you greater flexibility when balancing multiple microphones, instruments, and other connected audio sources.
Built-In 24-Bit Digital Multi-FX Processor
The Behringer XENYX X1204USB features a built-in 24-bit digital Multi-FX processor with 16 editable presets.
Available effect types include reverb, chorus, flanger, delay, pitch shifting, and other multi-effects.
These effects can add depth, ambience, movement, and character to suitable vocal and instrument signals without requiring a separate external effects unit for basic processing.
The Tap button also allows you to enter the timing of supported time-based effects manually.
As a result, the built-in effects provide convenient creative options for live performances, rehearsals, and recording sessions.
Important: The 24-bit specification refers to the digital effects processor. The mixer’s USB audio interface uses 16-bit conversion at a 48 kHz sample rate.
Built-In USB Audio Interface for Recording
The X1204USB includes a bidirectional stereo USB audio interface that connects to a compatible computer through its USB Type-B port.
This connection allows you to send the mixer’s audio to your computer for recording and use computer audio with the mixer in supported workflows.
You can use this feature for home recording, music production, rehearsals, and other computer-based audio applications.
The mixer also comes with recording and editing software as described by the manufacturer, although software availability and compatibility may depend on the supplied package and current software requirements.
Therefore, you can build a practical home recording setup without needing a separate standalone USB audio interface for basic stereo recording.
Flexible Stereo Channels and Auxiliary Connections
The Behringer XENYX X1204USB provides stereo input channels and auxiliary connections for integrating compatible audio equipment into your setup.
Its auxiliary sends support external effects and monitoring workflows, while the stereo return and other connections help you incorporate additional audio sources and processing equipment.
The mixer also provides routing options that allow you to manage the main mix and supported subgroup outputs.
This flexibility makes it useful for combining microphones, keyboards, playback devices, and other compatible equipment in one audio setup.
Phantom Power and Microphone Control
The X1204USB provides switchable +48V phantom power for compatible condenser microphones.
Its microphone channels also include gain controls and a low-cut filter designed to help manage unwanted low-frequency noise.
These features are useful when setting up microphones for vocals, speech, presentations, and live performances.
Always check the requirements of your connected microphones and equipment before enabling phantom power.
Audio Outputs and Monitoring
The Behringer XENYX X1204USB provides connections for routing audio to compatible sound systems and monitoring equipment.
Its published connections include:
- Four balanced XLR microphone inputs
- Four 1/4-inch line inputs for the mono channels
- Stereo line input channels
- Main balanced XLR outputs
- ALT 3-4 subgroup outputs
- Control room outputs
- Stereo headphone output
- Auxiliary sends and returns
- RCA two-track inputs and outputs
- USB Type-B audio connection
These connections allow you to integrate the mixer with suitable powered speakers, amplifiers, headphones, recording computers, and compatible external audio equipment.
For the best results, check the input and output requirements of your connected equipment before setting up your system.
Compact Design for Studios and Live Setups
The Behringer XENYX X1204USB combines its mixing controls, preamps, compressors, EQ, effects, and USB connectivity in one compact unit.
Its approximate dimensions are 328 × 270 × 97 mm, and its net weight is approximately 3.8 kg, according to the manufacturer’s published manual.
This design makes it suitable for home studios, rehearsal rooms, small venues, churches, mobile audio setups, and other applications where a flexible mixer is required without a large console.
For regular transportation, use suitable protective packaging or a compatible carrying case.
Power Supply
The X1204USB supports an AC mains voltage range of 100–240V at 50/60Hz and has a published power consumption of approximately 40W.
This voltage range supports use with compatible mains supplies in different regions.
Always use the appropriate power cable and follow the manufacturer’s safety and operating instructions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Behringer |
| Product Series | XENYX |
| Model | X1204USB |
| Product Type | Analog audio mixer with USB audio interface |
| Input Capacity | 12-input mixer |
| Bus Configuration | 2/2-bus |
| Mono Input Channels | 4 microphone/line channels |
| Stereo Input Channels | 2 stereo channels |
| Microphone Preamps | 4 XENYX mic preamps |
| Phantom Power | Switchable phantom power |
| Compression | One-knob compressors on mono channels |
| Channel EQ | British-style 3-band EQ |
| Digital Effects | 24-bit multi-effects processor |
| Effects Presets | 16 editable presets |
| USB Interface | Bidirectional stereo USB audio |
| USB Converter | 16-bit |
| USB Sample Rate | 48 kHz |
| Main Outputs | Balanced XLR and additional main output connections |
| Additional Routing | ALT 3-4 bus, control-room and auxiliary connections |
| Computer Connection | USB Type-B |
| Power Supply | Internal power supply |
| Mains Input | 100–240 V AC, 50/60 Hz |
| Power Consumption | Approximately 40 W |
| Dimensions (W × D × H) | Approximately 270 × 328 × 97 mm |
| Net Weight | Approximately 3.8 kg |
Specifications are based on the manufacturer’s published X1204USB product information and user manual. Confirm the exact package contents and product condition for your particular stock.
Why Buy from idfinestores?
- Quality Assured
- Clear product and warranty information
- Fast & Secure Delivery
- Free delivery on orders above ₦100,000
- Trusted by Customers Across Nigeria
- After Sales Customer Support
- Professional Online Shopping Experience
idfinestores is a professional Nigerian e-commerce marketplace specialising in gadgets, technology, electronics, and music equipment.
Delivery Information
We offer Pay on Delivery for your convenience.
For orders outside Lagos, a small delivery confirmation fee may be required. This helps us process and secure your order for smooth and successful delivery.
In Lagos, delivery can be completed the same day.
For other states, delivery typically takes 48–72 hours.
Free delivery is available on orders above ₦100,000.
What’s in the Box
The standard product package may include:
- Behringer XENYX X1204USB Analog Mixer
- Power Cable
- USB Cable
- Documentation and setup information
