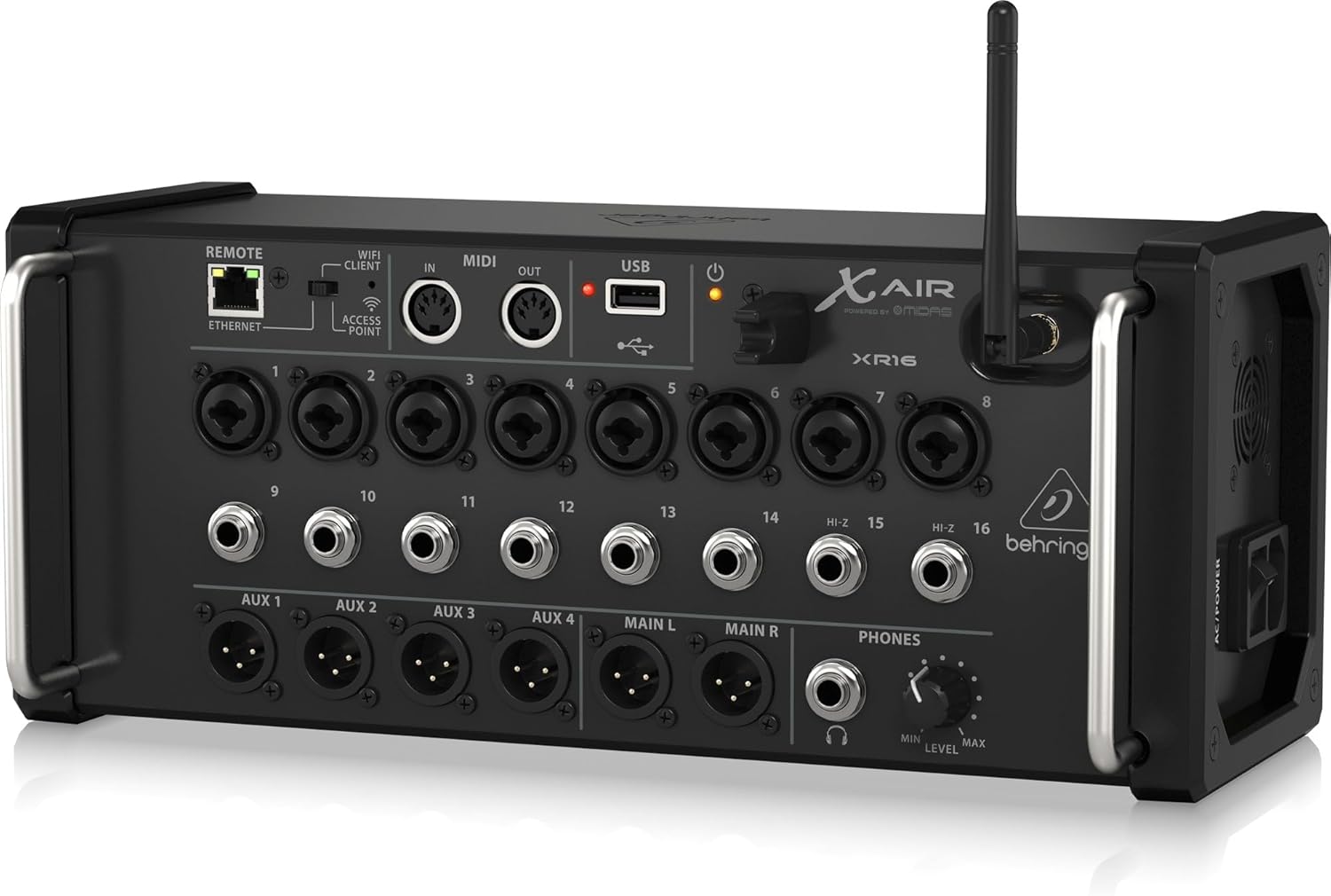

Behringer X AIR XR16 16-Input Digital Mixer
The Behringer X AIR XR16 is a versatile 16-input digital mixer designed for professional live sound, studio recording and event audio management. It combines MIDAS-designed microphone preamps, built-in wireless connectivity and advanced digital signal processing in a compact mixer that you can control remotely.
Unlike traditional mixing consoles that require physical faders and knobs for every adjustment, the XR16 allows you to manage your mixing functions through compatible tablets and computers. This gives sound engineers greater flexibility to adjust levels, monitor performances and control audio from different positions within a venue.
With four built-in stereo effects engines, six auxiliary buses, USB stereo recording and flexible input connections, the XR16 is suitable for bands, churches, DJs, event organisers, rehearsal spaces and professional sound installations.
16 Inputs with MIDAS-Designed Microphone Preamps
The XR16 provides 16 input channels to accommodate microphones, instruments, keyboards and other audio sources.
It features eight MIDAS-designed microphone preamps with XLR/TRS combination connections for professional microphone and line-level signals. Each microphone input supports individually switchable 48V phantom power for compatible condenser microphones.
The additional eight balanced TRS line inputs allow you to connect other audio sources, making the mixer suitable for handling multiple instruments and equipment during live performances.
Built-In Wi-Fi and Wireless Remote Mixing
One of the standout features of the Behringer X AIR XR16 is its integrated Wi-Fi module, which allows you to control the mixer remotely using compatible devices.
Instead of remaining beside the mixer throughout a performance, you can use a supported tablet or computer to adjust channel levels, manage effects, control monitor mixes and make other mixing changes.
The mixer also supports Ethernet connectivity, providing an alternative connection method when required.
This remote-control design is particularly useful for churches, live events, rehearsal spaces and venues where sound engineers need to move around to monitor audio from different listening positions.
Four True-Stereo Digital Effects Engines
The XR16 includes four built-in true-stereo effects engines that provide additional creative options for shaping your sound.
You can apply supported effects such as reverbs, delays, modulation and other processing options to suitable audio channels and mixes.
These integrated effects help reduce the need for separate external effects processors in many live sound and recording setups.
Six Auxiliary Buses for Flexible Monitoring
The Behringer X AIR XR16 provides six auxiliary buses that allow you to create separate monitor mixes and route audio to different destinations.
This is useful for bands, vocalists, musicians and performers who need individual monitoring arrangements during rehearsals or live performances.
Its four balanced XLR auxiliary outputs provide physical connections for compatible monitor speakers and other audio equipment.
USB Stereo Recording and Playback
The XR16 features a USB Type-A connection that supports stereo recording and playback through a compatible USB flash drive.
You can record the main stereo mix directly to a USB storage device and play supported audio files through the mixer.
This provides a convenient way to capture live performances, save rehearsal recordings and play audio without connecting an additional recording device.
The USB flash-drive function provides stereo recording rather than 16-channel multitrack USB audio recording.
High-Impedance Inputs for Guitar and Bass
Channels 15 and 16 include high-impedance input support, allowing you to connect compatible electric guitars and bass instruments directly.
This provides additional flexibility for musicians who want to connect instruments without necessarily using separate DI boxes.
The mixer also supports a wide range of microphone and line-level equipment through its other input connections.
Compatible Control Applications
The Behringer X AIR XR16 works with supported X AIR control applications for different operating systems.
Compatible control platforms include:
- iOS: Control the mixer using supported iPad applications.
- Android: Manage mixing functions through compatible Android tablets.
- Windows: Access supported computer-based mixing controls.
- macOS: Control the mixer through compatible Mac applications.
- Linux: Supported computer control options are also available.
The control applications allow you to manage channel processing, effects, routing and mixing functions remotely. Check the current application and operating-system requirements before installation.
What You Need to Get Started
To use the Behringer X AIR XR16, you will need:
- Microphones, instruments or other compatible audio sources.
- A compatible tablet or computer for remote mixer control.
- Powered speakers or a compatible amplifier and passive speaker system.
- Appropriate XLR and TRS audio cables.
- A USB flash drive for stereo recording and playback, if required.
- A suitable power connection.
You can connect your microphones, instruments and other audio equipment directly to the mixer, then use a supported control application to configure your sound.

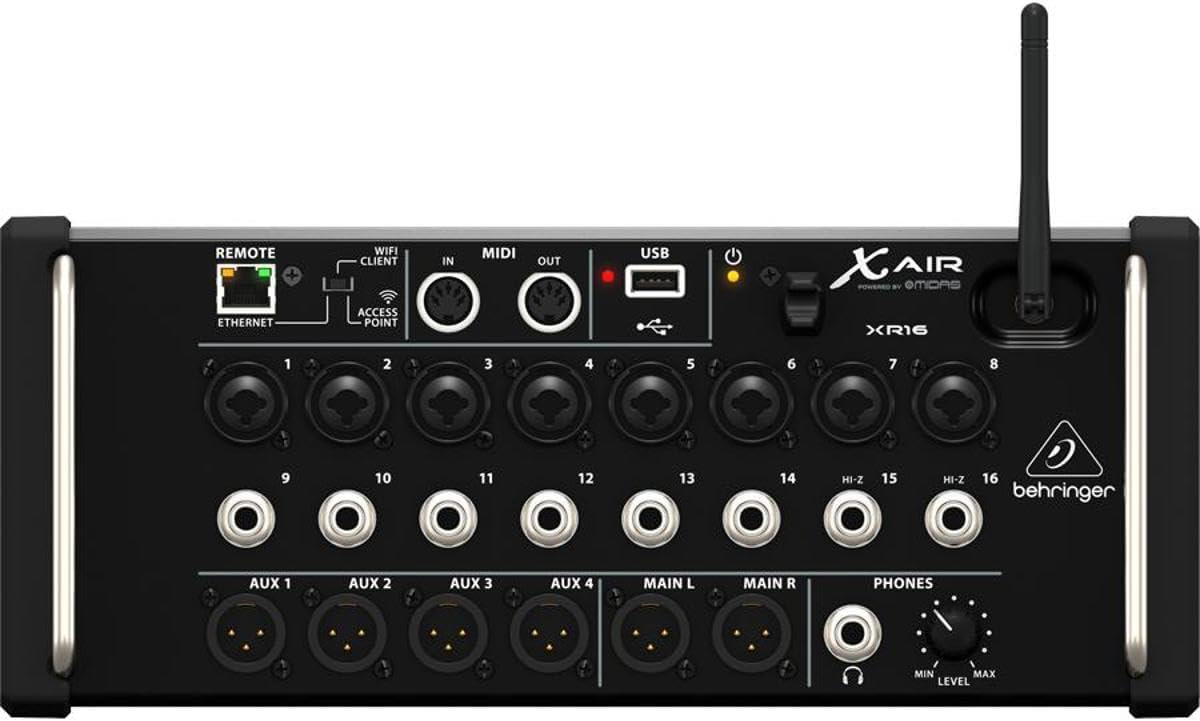

Connectivity and Compatibility
The Behringer X AIR XR16 provides a range of professional audio and control connections.
Its input connections include eight balanced XLR/TRS combo microphone and line inputs and eight balanced TRS line inputs.
For output connections, it features two balanced XLR main outputs, four balanced XLR auxiliary outputs and a dedicated headphone output.
Additional connectivity includes:
- USB Type-A: Stereo recording and playback using a compatible USB flash drive.
- Ethernet RJ45: Wired network connection for remote control.
- Built-In Wi-Fi: Wireless control through compatible devices.
- MIDI In/Out: Connection to compatible MIDI equipment.
- 48V Phantom Power: Individually switchable on the eight microphone preamp inputs.
The XR16 supports 24-bit A/D and D/A conversion at 44.1 kHz and 48 kHz, with 40-bit floating-point internal signal processing.
Technical Specifications
- Brand: Behringer
- Model: X AIR XR16
- Product Type: 16-Input Digital Mixer
- Input Channels: 16
- Microphone Preamps: 8 MIDAS-designed programmable preamps
- Microphone/Line Inputs: 8 balanced XLR/TRS combo inputs
- Additional Line Inputs: 8 balanced TRS inputs
- High-Impedance Inputs: Channels 15 and 16
- Phantom Power: 48V, individually switchable
- Internal Effects Engines: 4 true-stereo effects engines
- Auxiliary Buses: 6
- Main Outputs: 2 balanced XLR
- Auxiliary Outputs: 4 balanced XLR
- Headphone Output: 1 TRS
- USB Connection: USB Type-A
- USB Function: Stereo recording and playback
- Wireless Connectivity: Built-in Wi-Fi
- Network Connection: 1 RJ45 Ethernet port
- MIDI Connectivity: MIDI In/Out
- A/D-D/A Conversion: 24-bit at 44.1/48 kHz
- Internal Signal Processing: 40-bit floating point
- Dynamic Range: 114 dB converter dynamic range
- Analog I/O Latency: 0.8 ms
- Frequency Response: 10 Hz – 22 kHz
- Power Supply: Internal switch-mode power supply
- Dimensions: 333 × 149 × 140 mm
- Weight: 3.0 kg
